Tower crane Terex Comedil model CTT71 2.5 TS 12, n. G9308006 and serial no. 209/200088 / PA. Year of manufacture 2008.

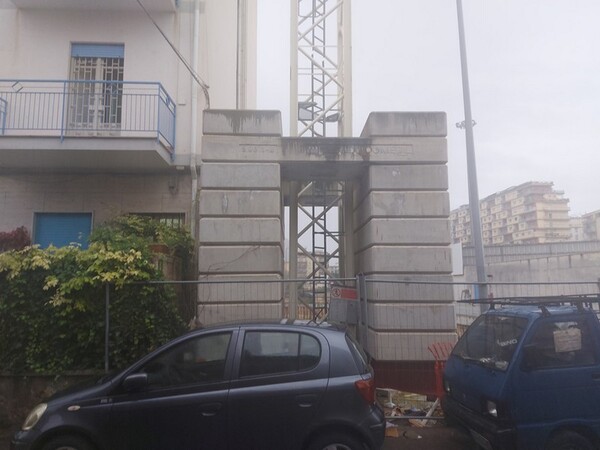

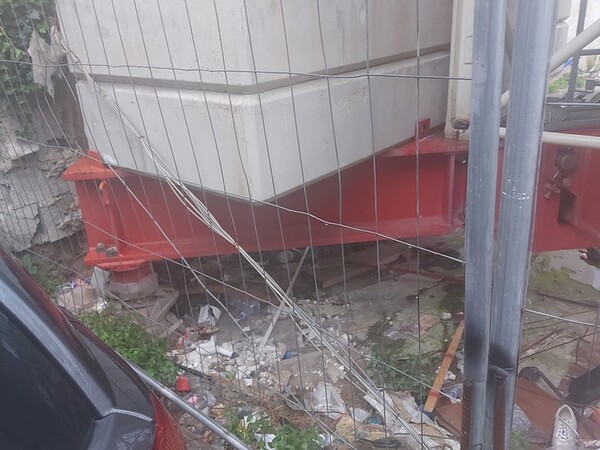

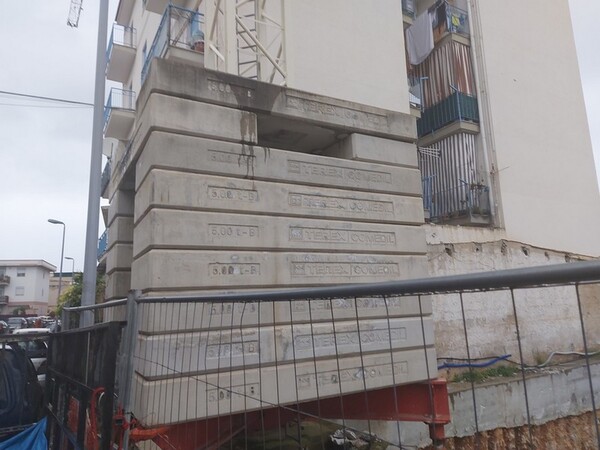

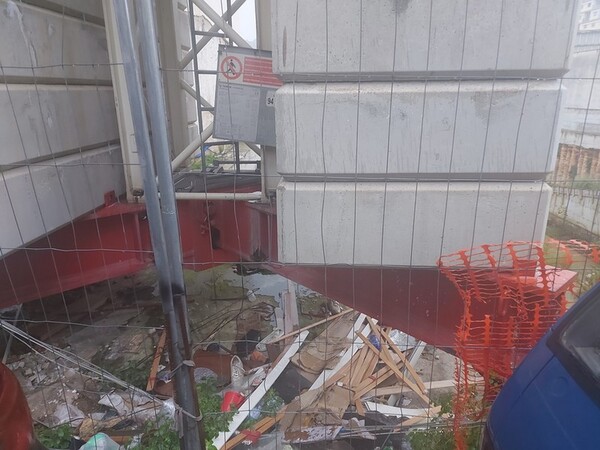

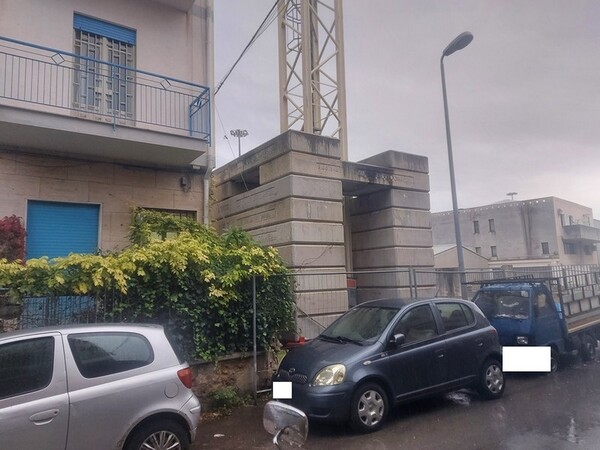

The base of the crane, consisting of a cross in H-shaped steel sections, which supports the ballast, rests on the foundation plate in reinforced concrete by means of four stabilizing supports. The ballast consists of 18 blocks of 5,000 kg each.

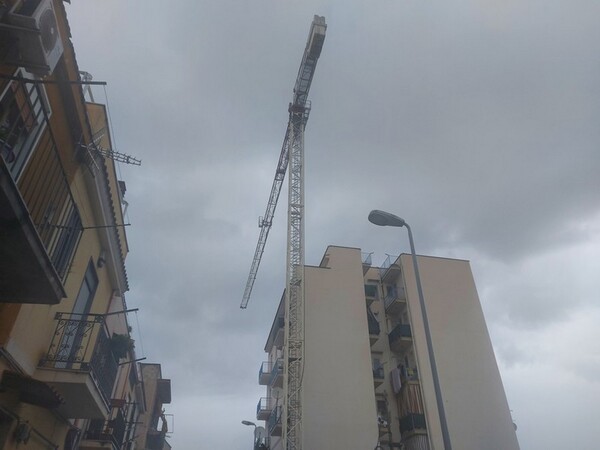

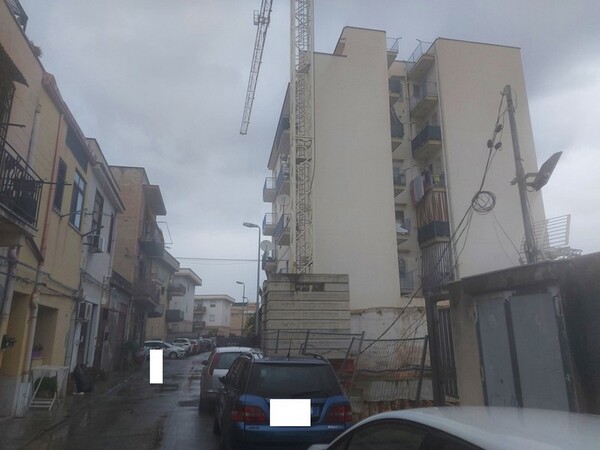

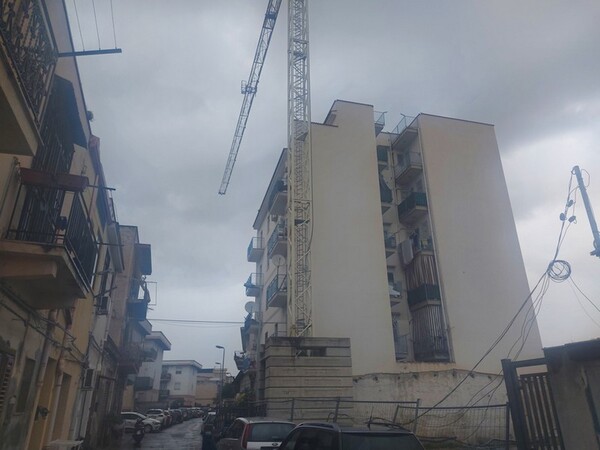

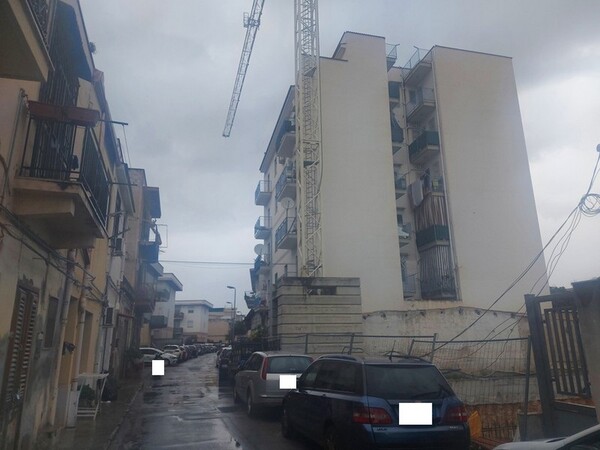

The tower is made up of n. 3 truss elements with square section in painted steel of m. 11.80 each for a total height of m. 35.40.

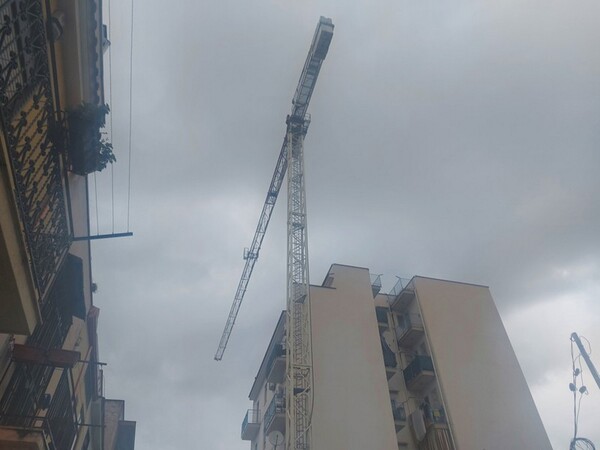

The fourth element with a height equal to m. 5.90. The arm, with a total length of m. 51,40, consists of triangular section elements with reticular beams in profiles and tubes without tie rods and without cusps.
The capacity varies from 2,500 kg with trolley to m. 22.90 up to 1.000 kg with trolley at 50.00 m.
It should be noted that the radio control (AUTEC, TA02 s / n G64353) and the relative battery charger and batteries and the remote control are missing.
NOTES FOR COLLECTION
- maximum time for collection: 4 days
