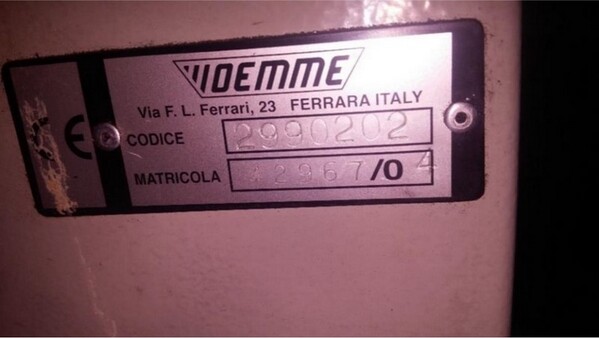

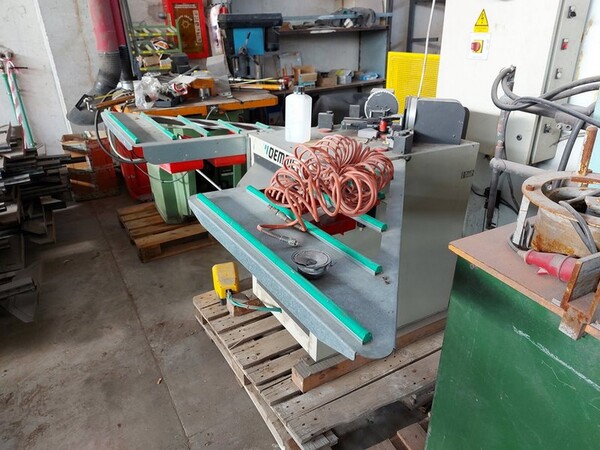

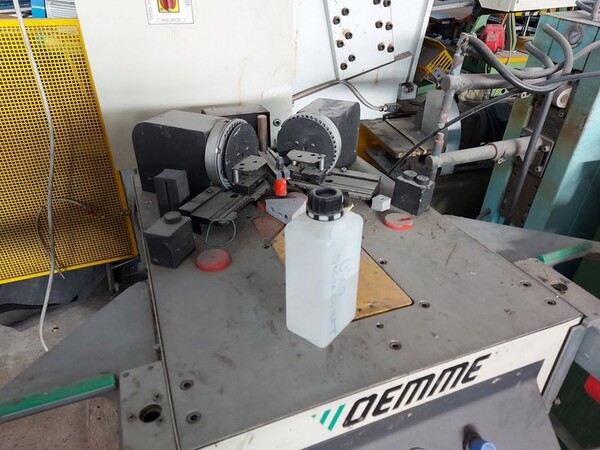

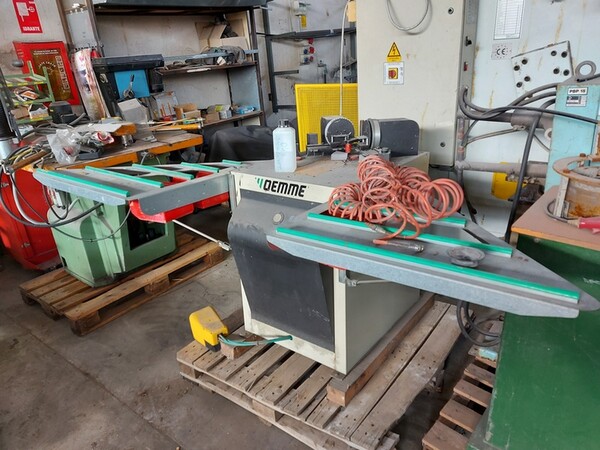

N.1 Oemme broach-crimping machine complete with accessory kit, mod. 2990202, serial number 42967/04, year 2004.
No documentation available. CE marked.
Processing thrust on each dowel head: 37300 N (3800 Kg)
Adjustable pinching height: Min 10 mm Max 35 mm.
Retractable pneumatic vice, adjustable in height, with double button control and system for automatic adjustment of the stop position according to the width of the profile.
Automatic cyclic feed plug loader.
Height adjustable profile supports.
Overall dimensions: 2300 mm (a) x 1500 mm (b) x 1100 mm (c) (MAC 210 SC).
Machine weight: 334 Kg.
